Atlas Filtri HYDRA 3/4 RAH Filter Housing
Model Code: -
- $193.70

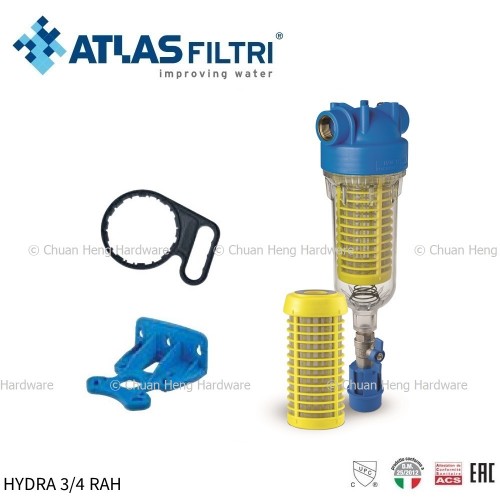

Set: HYDRA 3/4 RAH wth spanner+ bracket
Single stage self-cleaning filters for effective removal of sediments. Easy and quick cleaning, thanks to the exclusive system with back-wash in counter- current. Available in various models.
THE HYDRA SELF-CLEANING FILTER IS CHARACTERISED BY THE COUNTER-CURRENT WASHING SYSTEM FOR EFFECTIVE SEDIMENTS REMOVAL.
The cleaning operations are simple and within reach for everyone: they can take place manually by opening the drain ball valve at the bottom of the filter, or automatically, thanks to the dedicated kit auto. Process efficiency is guaranteed by the drain system designed to block reflux of the ejected water.
The self-cleaning filters are certified by important international bodies that attest to their quality and performance, conforming to current standards
Technical Features
- Self-cleaning water filter with counter-current washing self-cleaning system
- Suitable with SX (DOE) cartridges RAH, RLH
- Head: reinforced polypropylene
- Bowl: PET
- Drain valve for manual cleaning
- Model M with 2 manometers
- Prepared for Kit auto
- Anti-pollution from reflux drain system
- Capacity intervals from 3000 to 10000 l/h
- Maximum operating temperature: 45°C (113° F)
- Maximum operating pressure, BSP versions: 8 bar (116 psi)
- Maximum operating pressure, NPT versions: 8,6 bar (125 psi)
Benefits
- Atoxic materials, suitable for potable water
- Suitable for cartridges with different filtration degrees
- Manual cleaning can be easily automated
- Safer drain operations
- Manometers provide full control of pressures
- Wide range of accessories
