Atlas Filtri RA Mignon A SX Series Filter Cartridge
Model Code: RA Mignon A SX
- $40.25

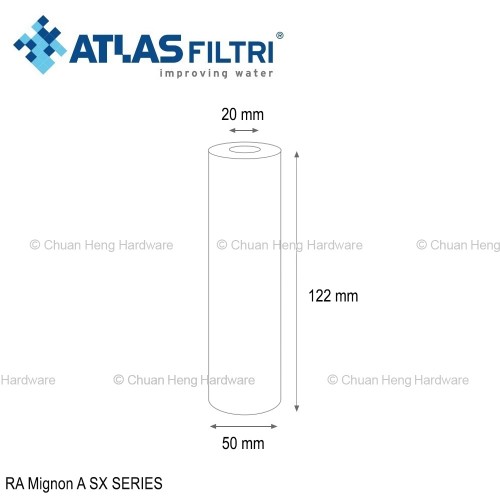

Height: 5"M (122mm)
Filtration: 70 micron

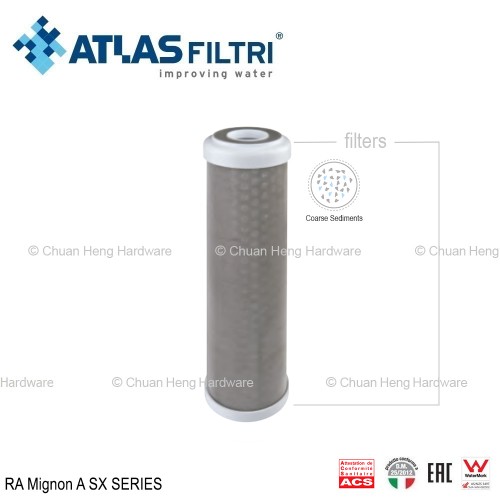

THE RA MIGNON SX (DOE) WASHABLE FILTER CARTRIDGES DISTINGUISH THEMSELVES THANKS TO 5”M HEIGHT, WITH STAINLESS STEEL NET AND FRAME.
They adapt exclusively to MIGNON housings, providing easy installation in small spaces.
The RA MIGNON SX are available with a nominal filtration of 70 micron and maximum capacity up to 800 l/h. They are suitable for coarse filtration of waters loaded with sediments. Maximum filter efficiency is maintained by washing the filter cartridges every three months.
Available in two variations:
- RA-A washable cartridges made in AISI 316 stainless steel
- RA-C washable cartridges made in AISI 304 stainless steel
Qty
Technical Features
- Stainless steel filter cartridges for the removal coarse sediments
- SX cartridges: double open end (DOE) with flat antimicrobial gaskets
- Can be installed on MIGNON housings, 5” M height
- Filter medium and inner armouring: stainless steel net AISI 316 /AISI 304
- Inner core and end caps: polypropylene
- Maximum operating temperature: 80°C (176°F)
- Average duration: 3-5 years
- Maintenance: wash every 3 months
- Use with potable water. Do not use with microbiologically impure water or of unknown quality
Benefits
- Atoxic materials, suitable for potable water
- Structure is highly resistant thanks to the net with internal steel frame
- Durable and resistant over time, even at high temperatures
- Gasket reduces bacterial spreading
- High capacity and low pressure drop
- Ideal for small installations
