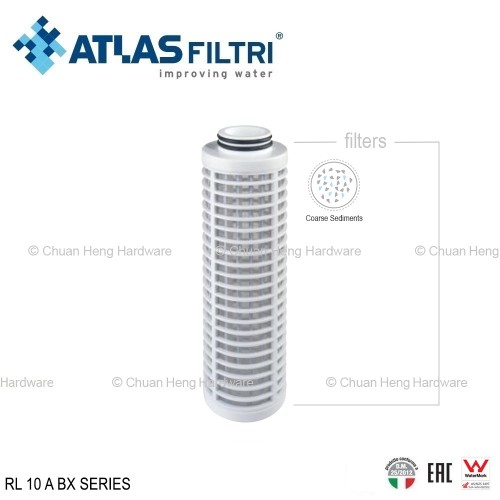

Atlas Filtri RL A 10 BX Series Filter Cartridge
Model Code: RL A 10 BX
- $68.00

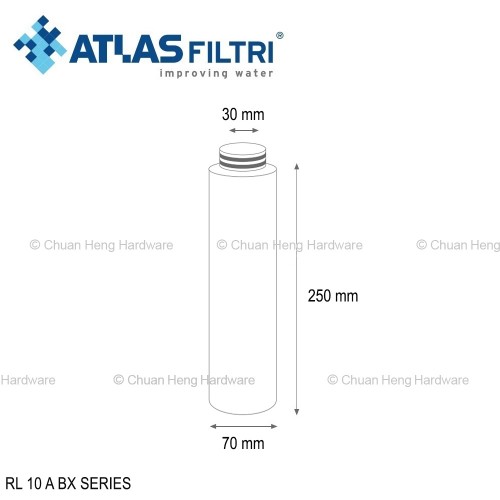

Height: 10" (250mm)
Filtration: 70 micron
THE RL A BX (SOE-O-RING 222) WASHABLE FILTER CARTRIDGES WITH QUICK COUPLING WITH DOUBLE 45 MM O-RING ARE EQUIPPED WITH AISI 316 STAINLESS STEEL TUBULAR NET IN ORDER TO GUARANTEE EFFICIENT FILTRATION FOR TECHNICAL AND INDUSTRIAL USES.
They allows a uniform water flow and limited water losses.
With 10” height, capable of offering nominal filtration of 70 micron, the filter cartridges ensure greater resistance and duration.
Washing the filter medium can restore conditions that are comparable to those of the new cartridge.
Qty
Technical Features
- Stainless steel net washable filter cartridges for coarser sediment removal
- BX cartridges: quick coupling with double 45 mm o-ring
- Can be installed on PLUS 3P BX housings, DP housings, K DP, DEPURAL TOP housings
- Filter medium: stainless steel net AISI 316
- Armouring and end caps: polypropylene
- Maximum operating temperature: 45°C (113°F)
- Average duration: approximately 2-3 years
- Maintenance: wash every month
- Use with potable water. Do not use with microbiologically impure water or of unknown quality
Benefits
- Atoxic materials, suitable for potable water
- Different models and configurations
- High capacity and low pressure drop
- Ideal for pre-filtering in technical and industrial environment uses
- Perfect seal with 45 mm double o-ring
