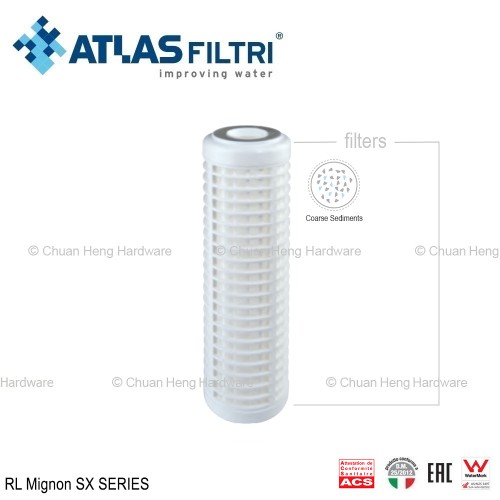

Atlas Filtri RL Mignon SX Series Filter Cartridge
Model Code: RL Mignon SX
- $26.50

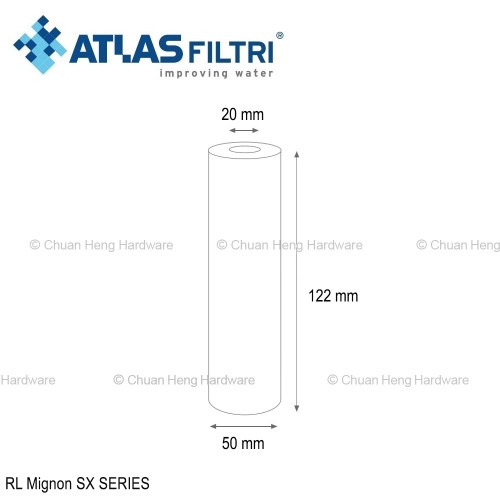

Height: 5"M (122mm)
Filtration: 50 micron
THE RL MIGNON SX (DOE) WASHABLE FILTER CARTRIDGES WITH 5”M HEIGHT ARE DESIGNED TO ADAPT TO THE EXCLUSIVE MIGNON HOUSINGS.
Thanks to the tubular polyester net they are built with, they guarantee a uniform water flow and very low charge losses, easily integrating into reduced spaces.
They are manufactured without glue or sealants, by over-moulding the rigid structural support over the net.
Capacity up to 800 l/h and nominal filtration of 50 micron. Washing the filter medium can restore conditions that are comparable to those of the new cartridge.
Qty
Technical Features
- Polyester washable filter cartridges for coarser sediment filtration
- SX cartridges: double open end (DOE) with flat antimicrobial gaskets
- Can be installed on MIGNON housings, 5” M height
- Filter medium: polyester net
- Armouring and end caps: polypropylene
- Maximum operating temperature: 45°C (113°F)
- Average duration: approximately 24 months
- Maintenance: wash every month
- Use with potable water. Do not use with microbiologically impure water or of unknown quality
Benefits
- Atoxic materials, suitable for potable water
- Reduced size, minimum overall space
- High capacity and low pressure drop
- Ideal for pre-filtering in small systems
- Durable and resistant over time
